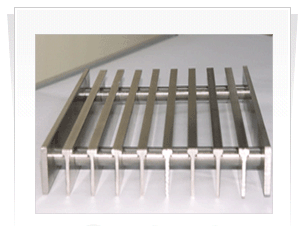

| · · Syoerbly crafted stainless steel V bar &
T bar grating for hygiene and corrosion-resistance.Narrow
spacing between bars makes this grating ideal for
pedestrian areas,doorways,lift entrances and swimming
pools as well as heelguard. |
| General Specification |

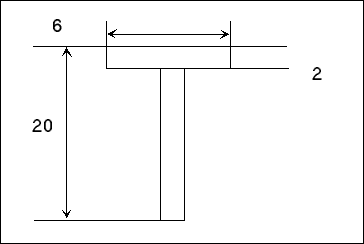

| ** Bearing bar：T bar 20x6x2t |
| ** Pitch：standard 15mm but adjustable upon request |
| ** Cross bar：round ￠6 |
| ** Space bar：pipe ￠8 |
| ** End bar：L-35x30x3 |
| ** Material：Stainless steel 304 or 316 |
| |
|
|
|
